Top Garden Drainage Systems to Prevent Waterlogging

Waterlogging is one of the most common problems in gardens, leading to poor plant health, root rot, and fungal diseases. Excess water, if not managed properly, can drown plant roots and leave your garden vulnerable to a range of issues. To prevent waterlogging and ensure your garden stays healthy, it’s essential to have an efficient drainage for garden in place. Below are some of the best drainage solutions that can help you manage excess water and promote better plant growth.

1. French Drains

A French drain is one of the most effective drainage systems for preventing waterlogging in gardens. This system uses a trench filled with gravel or rock, which contains a perforated pipe to carry excess water away from your garden beds or lawn.

How it works:

  • The trench is dug in areas where water tends to pool or accumulate.
  • The trench is lined with a layer of landscape fabric to prevent soil from entering the gravel.
  • A perforated pipe is placed in the gravel, allowing water to enter the pipe and be redirected to a lower point in the garden or a drainage system.

Benefits:

  • Reduces waterlogging in areas prone to pooling.
  • Ideal for heavy clay soils where water tends to stay.
  • Long-lasting and efficient.

2. Dry Wells

A dry well is an underground structure that collects excess water and allows it to slowly seep back into the ground, preventing water from collecting at the surface. This drainage solution is particularly useful in areas with poor natural drainage or where water tends to pool in low spots.

How it works:

  • A dry well is typically installed in the lowest point of the garden where water accumulates.
  • It consists of a perforated container (usually a plastic or concrete structure) filled with gravel or stone to allow water to flow through it and into the surrounding soil.
  • The well collects excess water from areas such as downspouts, surface drains, or French drains.

Benefits:

  • Prevents standing water and waterlogging.
  • Ideal for small areas or gardens with limited space.
  • Environmentally friendly, as it allows water to return to the ground.

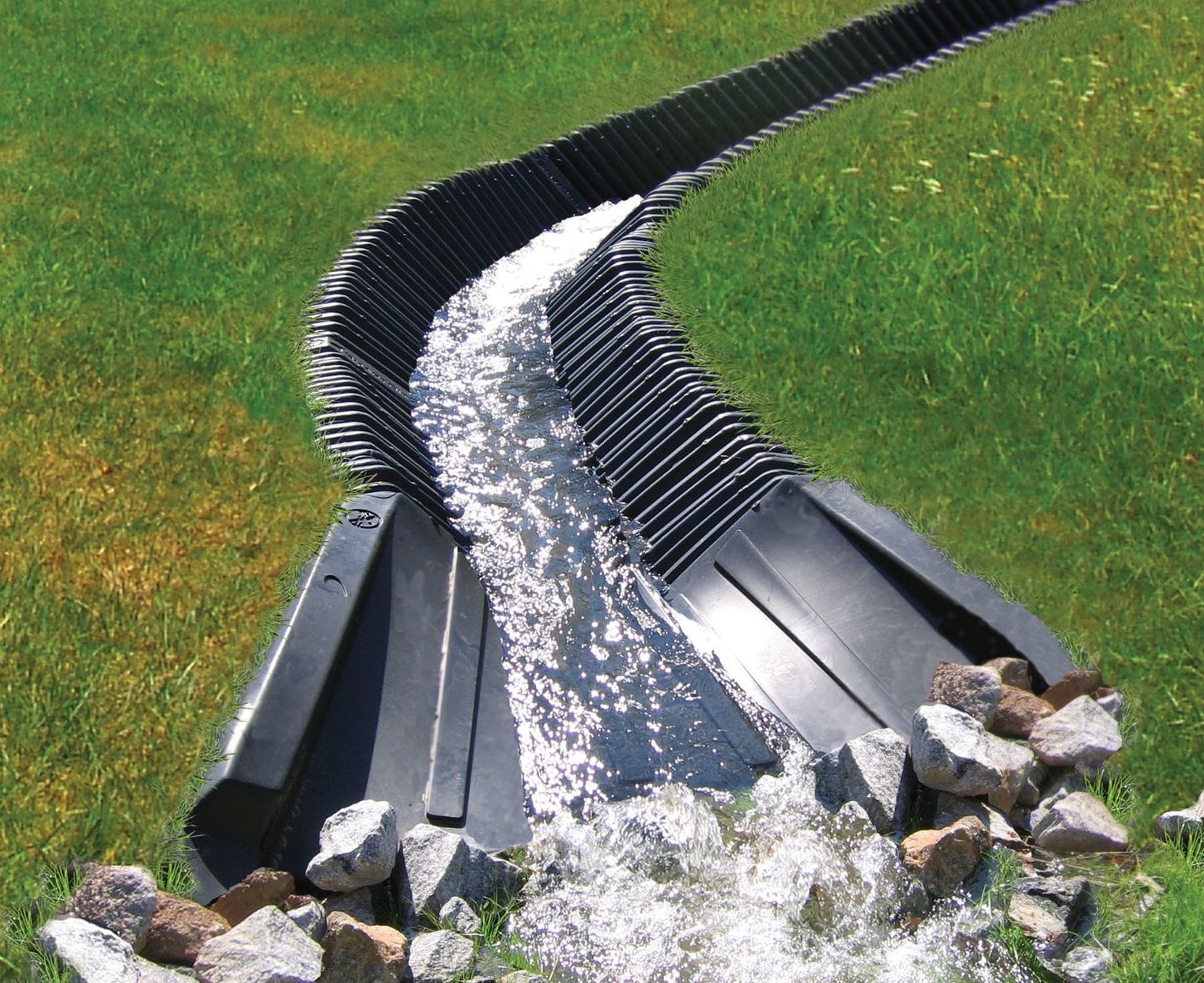

3. Surface Drains

Surface drains are designed to capture water at the surface level and direct it away from areas prone to flooding or waterlogging. These drains are often installed in low-lying areas of the garden, where water naturally tends to accumulate.

How it works:

  • Surface drains are typically installed as channels or grates, which collect water from garden beds or lawns.
  • The collected water is then directed through pipes to an appropriate drainage area, such as a French drain or dry well.

Benefits:

  • Prevents water from pooling in garden beds and lawns.
  • Easy to install in areas where water accumulates on the surface.
  • Can be integrated with other drainage systems for a more efficient solution.

4. Soakaway Pits

A soakaway pit is another effective drainage system that allows water to be absorbed into the ground rather than running off the surface. This system works by directing water from gutters, drains, or other areas into a pit that is lined with gravel or permeable materials to allow water to slowly percolate into the soil.

How it works:

  • A soakaway pit is dug into the ground, usually near the garden’s low-lying areas.
  • The pit is filled with gravel or other permeable materials that allow water to filter through and into the surrounding soil.
  • The pit can be connected to gutters or downspouts to capture excess rainwater or irrigation runoff.

Benefits:

  • Helps reduce waterlogging and soil erosion.
  • Provides a natural way to manage excess water.
  • Ideal for small gardens or areas with heavy rainfall.

5. Raised Garden Beds

One of the simplest ways to improve drainage and prevent waterlogging in your garden is to create raised garden beds. Raised beds elevate the soil above the ground, allowing water to drain more effectively and preventing the roots from sitting in soggy conditions.

How it works:

  • Raised beds are built using materials like wood, stone, or bricks to create an elevated planting area.
  • The soil inside the raised bed is typically amended with organic materials such as compost to improve structure and drainage.
  • Raised beds allow water to drain off more easily, reducing the risk of root rot.

Benefits:

  • Provides better drainage for heavy or poorly-draining soils.
  • Easier to maintain and manage.
  • Prevents waterlogging and allows for more flexible planting choices.

6. Sump Pump Systems

For gardens in areas with severe drainage problems or where water accumulation is a consistent issue, a sump pump system can be a useful solution. Sump pumps are typically installed in basements or low-lying areas and work to pump excess water away from the garden and into a drainage system.

How it works:

  • A sump pit is dug in the lowest part of the garden where water collects.
  • A pump is installed in the pit to remove the collected water and direct it to a storm drain or a designated water collection area.
  • The pump can be triggered manually or by a float switch that activates when the water reaches a certain level.

Benefits:

  • Efficiently removes large amounts of water from the garden.
  • Ideal for gardens in flood-prone or low-lying areas.
  • Can be combined with other drainage systems for better results.

Landscape Drainage solutions for Minneapolis St Paul yards | Southview ...

7. Swales

A swale is a shallow trench or ditch that helps redirect excess water away from garden beds and lawns. Swales are designed to capture and slowly release water into the ground, preventing flooding and waterlogging.

How it works:

  • Swales are typically dug along the contour of the land to follow the natural flow of water.
  • They can be lined with vegetation or gravel to help absorb and slow down water as it travels through the garden.
  • Swales are often used in conjunction with other drainage systems like French drains or dry wells.

Benefits:

  • Helps prevent erosion and water runoff.
  • Ideal for gardens with large areas that need water management.
  • Can be landscaped with plants to improve aesthetics.

8. Gutter and Downspout Systems

Gutters and downspouts are the first line of defense against waterlogging, especially for gardens near the house. These systems direct rainwater from the roof away from garden beds and prevent water from collecting around foundations and plant roots.

How it works:

  • Gutters collect rainwater from the roof and channel it into downspouts.
  • The downspouts direct the water into a drainage system, such as a French drain, dry well, or surface drain.
  • Keeping gutters clean and free from debris ensures that water flows freely and doesn’t overflow onto garden beds.

Benefits:

  • Prevents excess water from pooling around foundations.
  • Helps manage stormwater runoff.
  • Easy to install and maintain.

Conclusion

To prevent waterlogging and keep your garden healthy, it’s essential to choose the right drainage system based on your garden’s needs. Whether you’re dealing with heavy clay soil, standing water, or simply want to enhance your garden’s overall drainage, solutions like French drains, dry wells, and raised garden beds can help manage excess water and improve soil health. Combining these systems with proper maintenance will ensure your garden thrives, no matter the weather.
